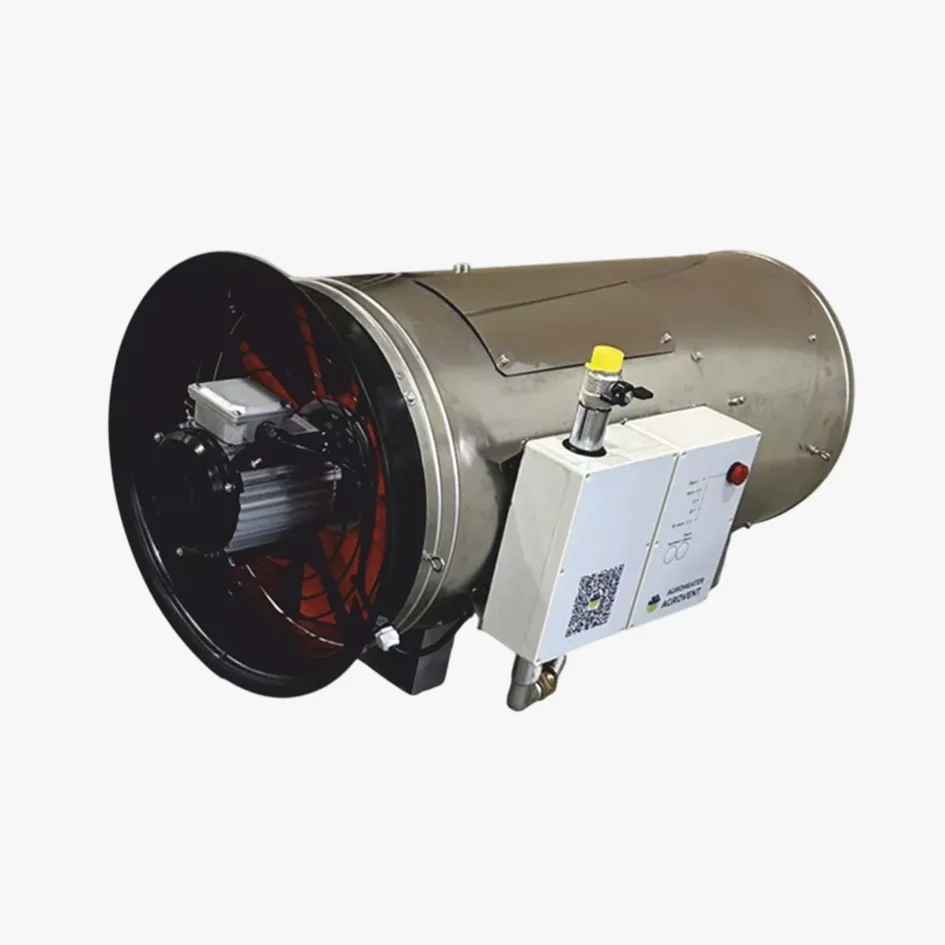

Agroheater N series
Agroheater is a cutting-edge gas-fired air heater designed for space heating applications in various industrial facilities, including:
- Industrial buildings
- Poultry farming facilities
- Livestock farms
The unit is also utilized for:
- Drying processes
- Thermal curtain systems for open openings
- Air heating solutions in agricultural environments
- Specifications
| Name | Agroheater N-40 | Agroheater N-70 | Agroheater N-100 | Agroheater N-120 |
|---|---|---|---|---|
| Heat power, kW | 40 | 70 | 100 | 120 |
| Natural gas consumption, m³/h | 4,3 | 7,5 | 10,8 | 13 |
| Propane gas consumption, kg/h | 2,9 | 5,4 | 6,5 | 8,1 |
| Voltage, AC | 230 | 230 | 230 | 230 |
| Frequency,Hz | 50 | 50 | 50 | 50 |
| Motor , kW | 0.575 | 0.575 | 0.575 | 0.575 |
| Electric consumption, A | 2,5 | 2,5 | 2,5 | 2,5 |
| Air movement, m³/h | 3800 | 5000 | 6500 | 6500 |
| Weight, kg | 48 | 51 | 53 | 54 |
| Length (A), mm | 1150 | 1150 | 1150 | 1150 |
| Width (B), mm | 600 | 650 | 710 | 710 |
| Height (C), mm | 560 | 620 | 680 | 680 |
Main advantages of the control panel:
The Repeater system does not require the installation of a discharge system for gases generated during combustion, which minimizes the cost of installing the heater. However, a room ventilation system using external air is needed as a result of an increase in CO2 levels due to gases released during operation. The air heater automatically maintains the set temperature in the heated room by an external control signal. As a safety measure, an ionization flame fuse is installed, which automatically turns off the burner in case of unstable operation of the device (fan shutdown, overheating, etc.).
Gas Heater for Poultry Houses "Agroheater N series"
The Agroheater gas heater is designed specifically for modern poultry farms and other agricultural facilities. It delivers fast, even heating to create a stable microclimate that supports bird health and productivity.
The system comes equipped with an automatic control unit that manages burner ignition, safety shut-off, and can be paired with a thermostat (optional). An ionization flame control system provides an additional layer of safety during operation.
A key advantage of Agroheater is the integrated controller with feedback functionality. This option continuously monitors temperature, adjusts fuel supply in real time, and maintains a stable climate with minimal fluctuations. Thanks to feedback control, the heater automatically regulates burner performance based on actual house conditions, ensuring fuel efficiency and precise temperature management.
Efficient gas–air mixing and powerful airflow deliver maximum heat output with minimal fuel consumption. The heaters can run on either natural gas or propane, and switching between the two is quick and straightforward.
The housing and main components are made from high-quality stainless steel, ensuring durability and long service life even under heavy use.
Agroheater is a vital part of any modern poultry microclimate system: it reduces stress, improves feed conversion, and helps maximize farm profitability.
Standard configuration is supplied for natural gas operation, with the option to add a thermostat for fully autonomous control.
